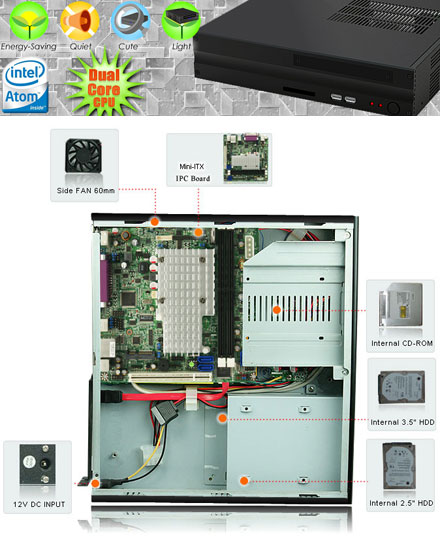

Jetway JBC110C96-525-BW (Intel Pine Trail-D)

PRODUCT IS CURRENTLY NOT AVAILABLE !
Jetway JBC110C96-525-BW (Intel Pine Trail-D)

  • INTEL® Atom D525 + NM10 Chipset
  • INTEL ® Atom Dual-Core Processor D525
  • Support 3Gb/s SATAⅡ with RAID
  • Support Single Channel DDRⅡ 800
  • Supports Gigabit LAN
  • Integrated ALC662 HD Audio CODEC with 6-CH
  • Support Watch dog Technology
  • Support CPU Smart FAN
  • WI-FI wireless card support(Only JBC110C96-52W-B )
  • Energy Efficiency Pioneer
  • Energy Efficiency Pioneer
  • Small size

Product Accesso [more]

Share

  • INTEL® Atom D525 + NM10 Chipset
  • INTEL ® Atom Dual-Core Processor D525
  • Support 3Gb/s SATAⅡ with RAID
  • Support Single Channel DDRⅡ 800
  • Supports Gigabit LAN
  • Integrated ALC662 HD Audio CODEC with 6-CH
  • Support Watch dog Technology
  • Support CPU Smart FAN
  • WI-FI wireless card support(Only JBC110C96-52W-B )
  • Energy Efficiency Pioneer
  • Energy Efficiency Pioneer
  • Small size

Product Accessories
- Manual
- CD
- Wall mount bracket
- AC adapter
- Power cord
- Riser card
- Wi-Fi antenna (Only JBC110C96-52W-B)

Model No
    JBC110C96-525-B   JBC110C96-52W-B
Motherboard Specification
CPU
    INTEL ® Atom Dual-Core Processor D525 (45nm,1.80GHz,1024MB L2 Cache)
Chipset
    I INTEL® Atom D525 + NM10 FSB 800/667 MHz
Memory
    2 * 240-pin DIMM Sockets for un-buffered Single Channel DDR2 800/667 SDRAM up to 4 GB
Expansion Slots
    1 * PCI slot, 1 * Mini PCI-E socket
LAN
    1 * RTL8111DL Gigabit LAN
Audio
    Realtek ALC662 6-Channel HD Audio CODEC
Storage
    4 * Serial ATA2 3Gb/s connectors 1 * Ultra DMA 100 / 66 IDE connector
USB
    Embedded 7 * USB 2.0/1.1
BIOS
    AMI 8MB DPI Flash ROM
Form Factor
    Mini-ITX Form Factor, M/B 170 x 170mm
Barebone Specification
Product size
    273(W) x 300(D) x 65(H)mm
Specs    Exposed
    1 x Slim ODD Drive Bay (Optional: 1 x 2.5” Drive Bay) Hidden: 1 x 3.5” HDD Drive Bay and 1 x 2.5” HDD Drive Bay
Colors
    Black Color
Cooling Fan
    Side: 6cm Fan x 1
Front I/O Port
    2 x USB(V2.0),
Rear I/O Port
    4 * USB 2.0/1.1 ports 1 * PS/2 Mouse & 1 * Keyboard Combined connector 1 * RJ-45 ports 1 * Audio I/O ports ( Line-in, Mic and Line-out ) 1 * VGA port 1 * COM port 1 * Parallel port for Printer 1 * 12V DC in connector 1 * WI-FI Antenna hole(Only JBC110C96-52W-B)
Power supply
    Onboard 12V DC-IN Power
Standard Accessory
    60W AC-DC Adapter x1 Power Cord x1 Wall Mount x2 1 x WI-FI Antenna(Only JBC110C96-52W-B) 1 x SATA-SLM ODD Cable + Power CD x1 Manual x1
Functional
    ATM, Automation, medical Equipment, Security, Networking, POS, General Application, Gaming Machine, Transportation
Packing
    Color Box Dimension:426(W) x 137(D) x 378(H)mm Gross Weight:4.385KG Net Weight:3.70KG
Certificate
    CE,FCC RoHS For Barebone CE,FCC,TUV,UL,CCC,CB For Power Adapter
Data sheet Download (PDF)
Data sheet Print view
Jetway Catalog (Rackmount) Download (PDF)
Jetway Catalog (Barebones) Download (PDF)
Specifications [EN] Download (PDF)
Please login for creating product ratings.
Your rating:

Please tell us your opinion. Rate the product on a scale from 1 to 5. A value of 5 means the best possible rating. If you want you also can leave a comment.

Your ratings are honored on many ways. Your report will help other customers to better judge about the products. And you can benefit from reports other customers are giving.

In addition we credit 0.50 EUR for each given rating with comment and 1.00 EUR for each given rating with comment (more than 150 characters) on your account. The credit will be substracted automatically on your next order !

We reserve us the right to delete given comments (for example on attempts to give comments with senseless content, copying of other comments, inserting of foreign content, abusing the system for financing orders). "Fair-use-policy" does apply (as of rule of thumb you should give comments for products which you have purchased already. And your credit account only in rare cases will have 2 or even 3 digits). The credit can only be withdrawn by placing an order. It is not possible to get the credit cash or transferred in an other way.

Customer ratings: 4 von 5 Sternen
Average rating, based on 1 ratings
4 von 5 Sternen from boomerangpc am 10.07.2012 | | See all my comments

Ottimo prodotto massima aggiornabilità buona qualità delle rifiniture facile ed intuitivo l'assemblaggio, piccolo e molto silenzioso possibilita di espandere in futuro, stistema molto potente drive presenti e molto facili da istallare per win xp.
ottimo lo consiglio a chi a intenzione di avere un secondo compiuter per utilizzo svariato
